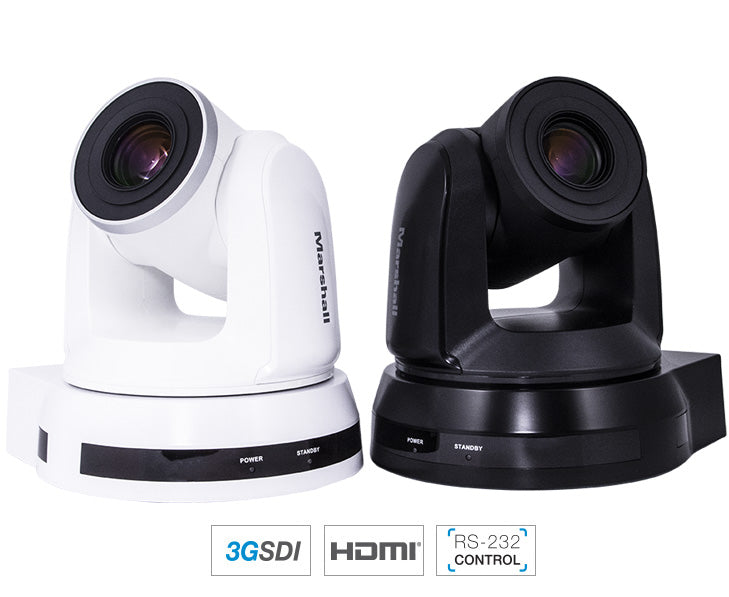

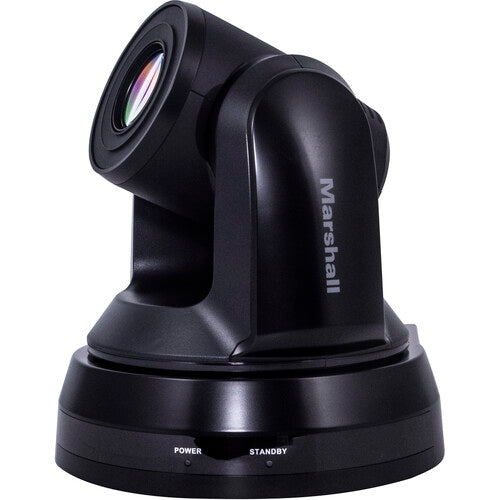

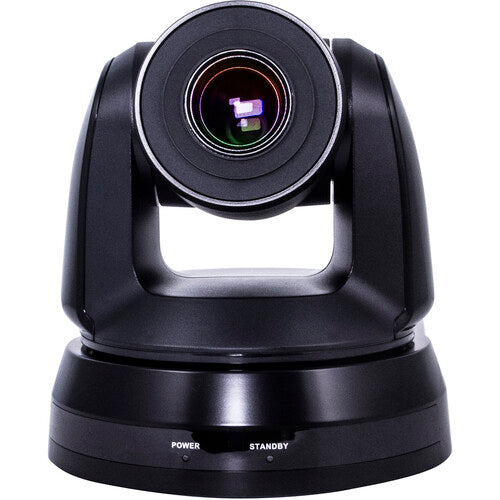

Clearance - Marshall Electronics CV620-BK4 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
Clearance - Marshall Electronics CV620-BK4 3G-SDI/HDMI PTZ Camera with 20x Optical Zoom (Black)
Couldn't load pickup availability
- 2-megapixel 1/2.8-inch HD sensor
- HD output: 1920x1080i, 1920x1080p, 1280x720p
- High speed: 60, 59.94, 50, 30, 29.97, and 25 fps
- 20X optical zoom (5.3~110mm/ F1.6~3.8) with 12X digital zoom
- 340° horizontal pan/ 120° vertical tilt
- Smooth synchronous pan, tilt, zoom, and focus for professional transitions
- 3G/HDSDI (BNC) and HDMI simultaneous video outputs
- Variable Transition Speeds: 5~300° per second with optional motionless transition
- Supports RS232/RS422 remote control interface
- Compatible with most integrated video management systems
- Mountable via table, wall or ceiling (ceiling mount included in box). Optional wall mounts CV-PTZ-WM (Black) or CV-PTZ-WMW (White) sold separately.
Crisp HD Video Output
The CV620 is built around a professional-grade, 2-Megapixel 1/2.8-inch sensor, with smooth 20x Optical Zoom (5.3~110mm) outputting HD video up to 1920x1080p, 1920x1080i and 1280x720p at 60fps.
Professional Outputs and Control Interface
Simultaneous 3G/HDSDI and HDMI outputs with control options over RS-422, RS-232, or IR remote control provide flexibility for inclusion in most modern workflows.
Flexible Control Options
The CV620 offers easy control over iris, shutter, white balance, focus, pan/tilt speeds, and more, controllable by IR remote, RS-232, or RS-422 with support for control protocols including Visca, Pelco, and more.
Additionally, the CV620 is compatible with Marshall's VS-PTC-IP PTZ Camera Controller, providing intuitive adjustment of pan/tilt/zoom, pan/tilt speeds, white balance, and more with one button dials and rocker control.
Products Link:
https://marshall-usa.com/cameras/CV620-BK4-WH4/
*no warranty, as is
